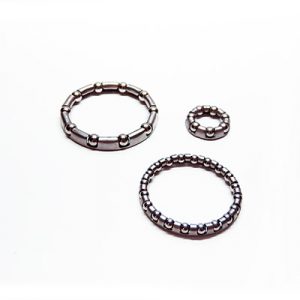

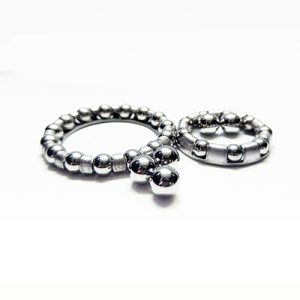

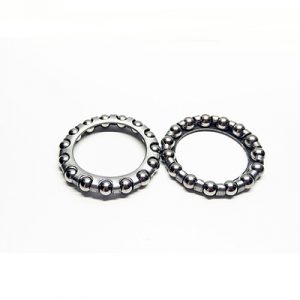

Ball retainer
Main Products
| NO. | Size | Postion | Retainer size | Packing | |||
|---|---|---|---|---|---|---|---|
| Out dia. | Inner.Dia | Qtty per ctn | ctn size | N.W/G.W | |||
| 1 | 1/4″*7 | Middle Hub. | 29.0 | 18.8 | 1000 | 40*17*14 | 11.3/10.0 |
| 2 | 1/4″*8 | 34.2 | 23.5 | 1000 | 40*20*16 | 13.3/12.0 | |
| 3 | 1/4″*9 | 29.0 | 18.8 | 1000 | 40*17*14 | 13.0/11.7 | |
| 4 | 1/4″*10 | 34.2 | 23.5 | 1000 | 40*20*16 | 13.5/12.2 | |
| 5 | 7/32″*10 | 30.0 | 21.5 | 1000 | 40*17*14 | 10.3/9.0 | |
| 6 | 3/16″*11 | 30.0 | 22.2 | 2000 | 34*23*17 | 15.0/13.6 | |
| 7 | 5/16″*7 | 37.5 | 25.5 | 1000 | 42*21*21 | 18.5/17.0 | |
| 8 | 5/16″*8 | 44.0 | 32.5 | 1000 | 46*24*21 | 23.1/21.4 | |
| 9 | 5/16″*9 | 44.0 | 32.5 | 1000 | 46*24*21 | 25.4/23.7 | |
| 10 | 5/16″*12 | 44.0 | 32.5 | 1000 | 46*24*21 | 30.0/28.3 | |
| 11 | 6mm*8 | 34.2 | 23.5 | 1000 | 40*20*16 | 12.0/10.7 | |
| 12 | 5mm*8 | 31.0 | 22.0 | 2000 | 36*28*19 | 14.5/13.0 | |
| 13 | 3/16″*6(A) | Front Hub | 20.8 | 12.5 | 2000 | 25*23*13 | 9.4/8.4 |
| 14 | 3/16″*7(A) | 20.8 | 12.5 | 2000 | 25*23*13 | 10.0/9.0 | |
| 15 | 3/16″*6(B) | 20.0 | 12.3 | 2000 | 25*23*13 | 9.0/8.0 | |
| 16 | 3/16″*7(B) | 20.0 | 12.3 | 2000 | 25*23*13 | 9.4/8.4 | |
| 17 | 5mm*6 | 20.8 | 12.3 | 2000 | 25*23*13 | 10.0/9.0 | |
| 18 | 7/32″*6 | brake | 32.0 | 23.5 | 2000 | 36*28*19 | 16.0/14.5 |
| 19 | 5/16″*9 | 32.0 | 23.5 | 2000 | 36*28*19 | 19.0/17.5 | |
| 20 | 1/4″*11 | 39.5 | 30.5 | 1000 | 40*22*19 | 16.7/15.2 | |
| 21 | 5/32″*7 | Pedal | 18.8 | 11.5 | 4000 | 40*22*12 | 13.0/11.5 |
| 22 | 5/32″*14 | Front Fork | 37.0 | 30.0 | 2000 | 42*21*21 | 14.0/12.5 |
| 23 | 5/32″*15 | 37.0 | 30.0 | 2000 | 42*21*21 | 15.0/13.5 | |
| 24 | 5/32″*16 | 37.5 | 30.0 | 2000 | 42*21*21 | 14.0/12.5 | |
| 25 | 5/32″*20 | 40.0 | 32.5 | 2000 | 42*21*21 | 14.0/13.0 | |
| 26 | 5/32″*22 | 40.0 | 32.5 | 2000 | 42*21*21 | 16.5/15.0 | |
| 27 | 3/16″*12 | 37.0 | 29.0 | 1500 | 42*21*21 | 13.5/12.0 | |
| 28 | 3/16″*15 | 39.0 | 31.0 | 1500 | 42*21*21 | 15.0/13.5 | |
| 29 | 1/4″*6 | Rear hub | 25.2 | 15.0 | 2000 | 40*23*15 | 18.5/16.8 |
| 30 | 1/4″*7 | 25.2 | 15.0 | 2000 | 40*23*15 | 20.0/18.3 | |
| 31 | 6mm*6 | 25.2 | 15.0 | 2000 | 40*23*15 | 16.5/14.8 | |
| 32 | 3/16″*12 | Front shock of motorcycle | 39.0 | 31.0 | 1500 | 42*21*21 | 13.1/11.6 |
| 33 | 1/4″*12 | 44.0 | 35.0 | 1000 | 36*25*21 | 17.6/16.6 | |
| 34 | 3/16″*14 | 37.0 | 28.5 | 1500 | 42*21*21 | 14.3/12.8 | |
| 35 | 3/16″*14 | 40.0 | 32.0 | 1500 | 42*21*21 | 14.6/13.1 | |
| 36 | 3/16″*15 | 39.5 | 32.0 | 1500 | 42*21*21 | 15.4/13.9 | |
| 37 | 3/16″*16 | 40.5 | 32.5 | 1500 | 42*21*21 | 15.8/14.3 | |
| 38 | 3/16″*16 | 44.0 | 36.0 | 1000 | 36*25*21 | 11.0/10.0 | |
| 39 | 3/16″*18 | 48.8 | 41.0 | 1000 | 36*25*21 | 12.0/11.0 | |
| 40 | 5mm*12 | 39.5 | 31.5 | 1500 | 42*21*21 | 14.3/12.8 | |
| 41 | 6mm*16 | 44.0 | 35.5 | 1000 | 36*25*21 | 18.6/17.6 | |
| 42 | 3/16″*14 | 37.0 | 28.5 | 1500 | 42*21*21 | 13.5/12.0 | |
| 43 | 1/4″*16 | 44.0 | 35.0 | 1000 | 36*25*21 | 21.0/20.0 | |
| 44 | 9/32″*12 | 41.0 | 30.0 | 1000 | 42*21*21 | 23.0/21.5 | |
| 45 | 5/16″*13 | 48.0 | 36.0 | 800 | 42*21*21 | 26.0/24.5 | |
